PFS PVDF and Polypropylene Flanges
PFS Fusion Socket Flanges are available in several connection sizes with a socket fusion connection. They can be used in conjunction with ASTM S80 pipe for easy installation. They are easy to disassemble for maintenance or reconfiguring the system.

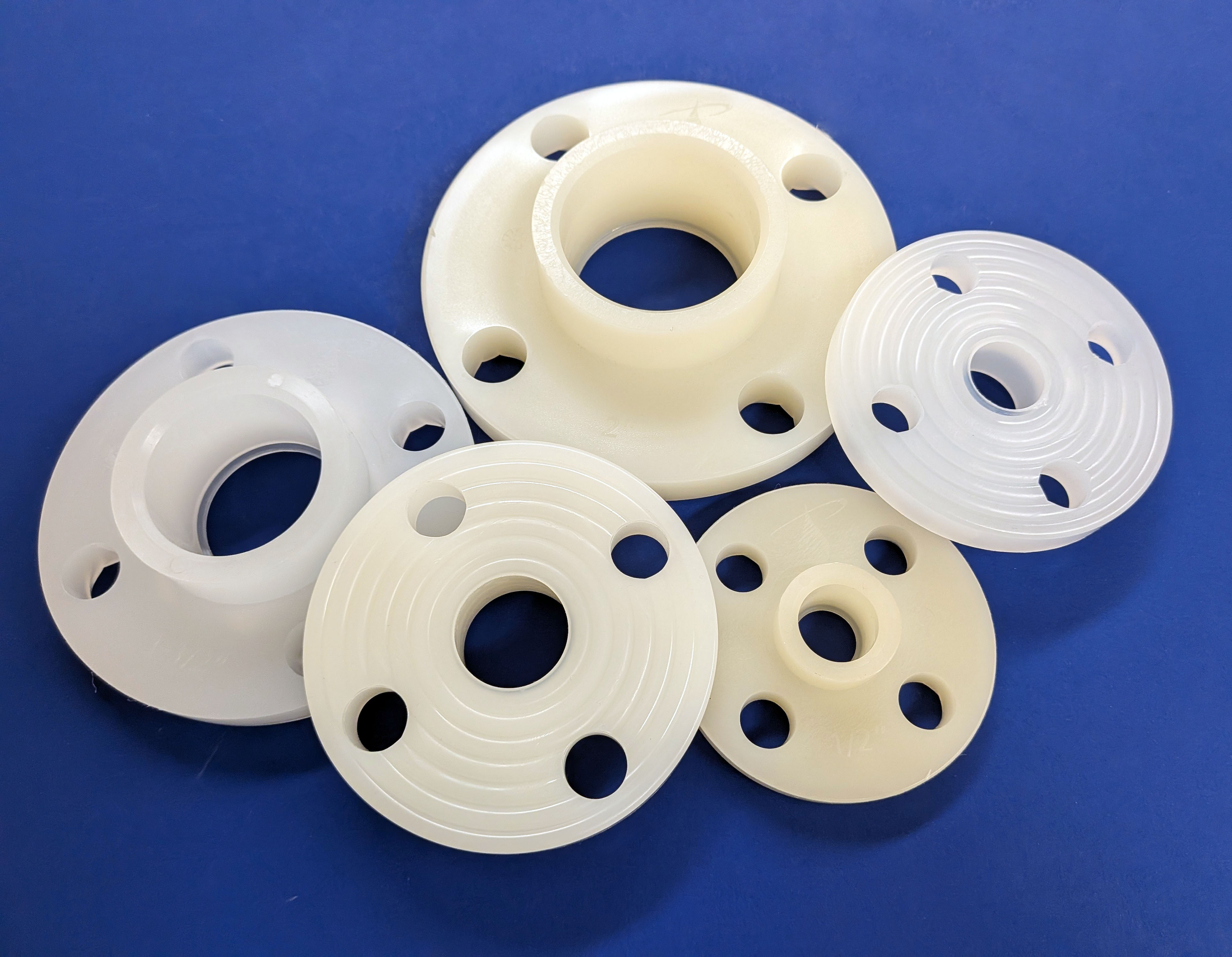

PFS Fusion Socket Flanges
Features:
- Available in PVDF (Kynar) or Polypropylene (PP)
- Several connection sizes, including 1/2", 3/4", 1", 1-1/2", and 2" sizes
- Bolting pattern to ANSI B16.5
- ANSI Flat Face standard for thermoplastic flanges
- Maximum pressure to 150 psig (10 bar) at 68°F (20°C)
- Manufactured to Schedule 80 Wall Thickness
- Made in North America
More Information on PFS Fusion Socket Flanges
PFS Flanges Product Literature
