AccuGUARD Gauges and Diaphragm Seals

AccuGUARD Gauges are designed to enhance the performance of chemical feed systems. Adding a pressure gauge to any system will help to ensure that optimal pressure are monitored and maintained. Without proper protection, process fluids can contaminate and damage in-line instrumentation.

AccuGUARD Diaphragm Seals are designed to protect and isolate pressure gauges and expensive instrumentation from corrosive, high temperature, or viscous process media.

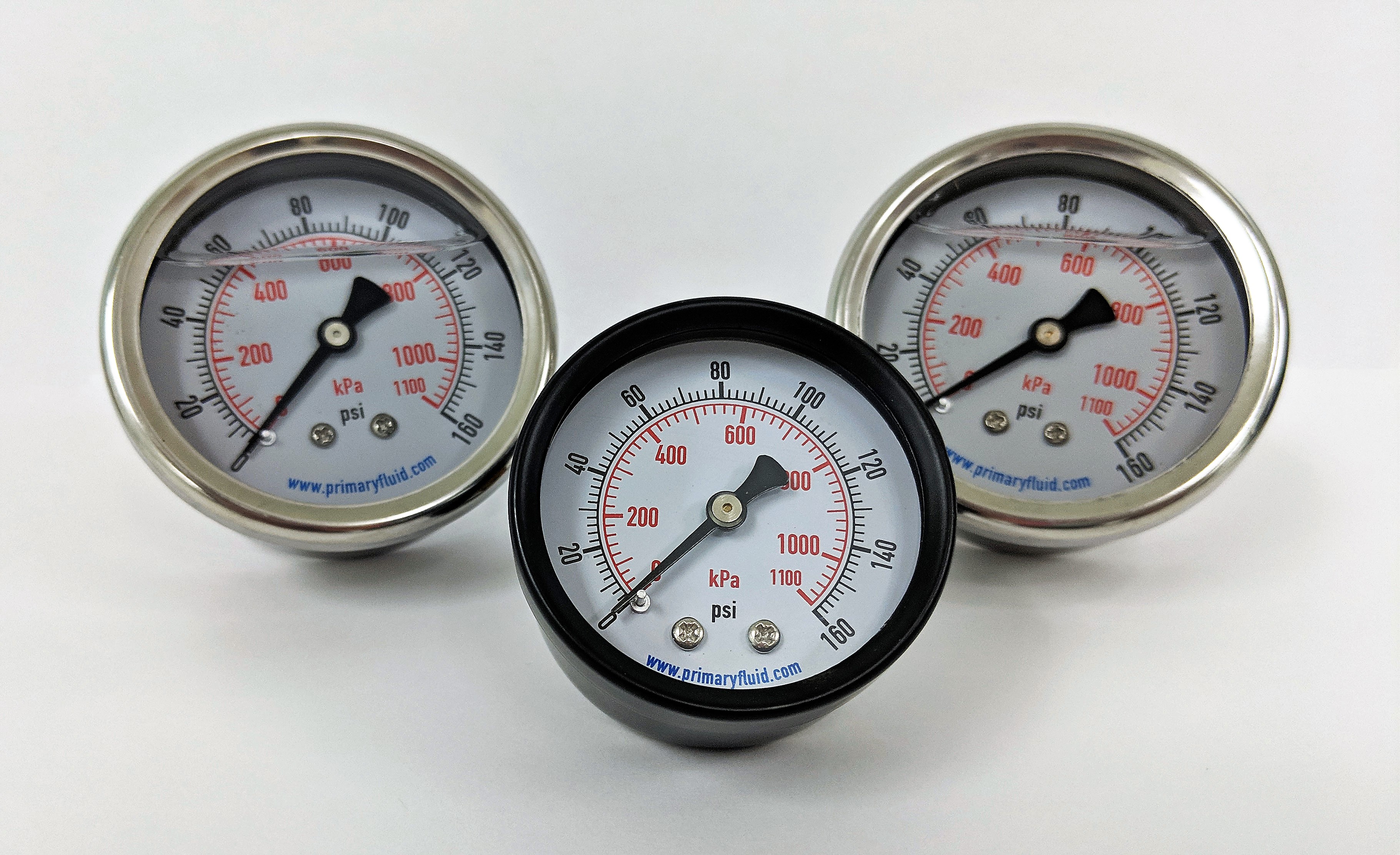

AccuGUARD Gauges


Features:

  • Gauge Diameters between 2" and 4"
  • 1/4" NPT Connections
  • Gauge housing in either a Steel case or 304 Stainless Steel
  • Brass or 316L S/S Internals
  • Five gauge indication ranges, up to 0 - 400 psig / 0 - 2800 kPa

AccuGUARD Gauges Literature

Accuguard Gauges

AccuGUARD Diaphragm Seals


Features:

  • Transfers process pressure accurately without direct contact with process fluids
  • Removes the need for expensive instrumentation
  • Easily installed and available in five chemically resistant materials of construction (PVC, CPVC, PP, PVDF, and Stainless Steel)
  • Optional diaphragm materials (Viton, EPDM, PTFE, and 316 S/S)
  • Available in 1/4" FNPT and BSPT connection types
  • Thermoplastic units rated to 240 psig (16 BARG) at 21℃ (70℉)
  • 316L S/S Units rated to 5800 psig (400 BARG) at 21℃ (70℉)

AccuGUARD Diaphragm Seals Literature

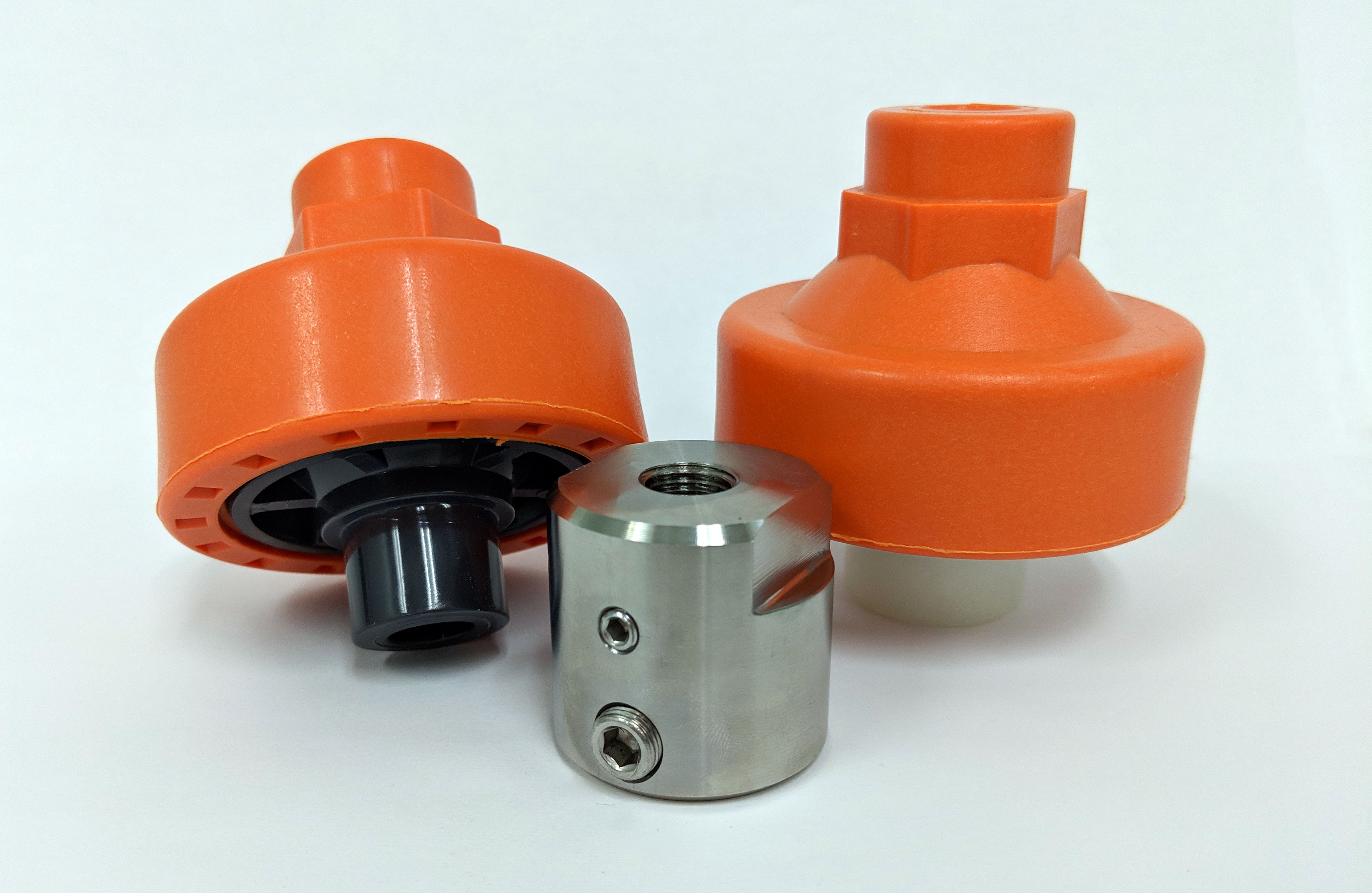

AccuGuard Gauge Guard in plastic and metal
