PFS Injection Quills

PFS Injection quills have been developed to allow chemical injection into the center stream of the flow. This ensures the dispersion of chemical in a more uniform manner, providing for a more homogeneous mix in the pipeline.

Standard features include:

• Six materials of construction
• Standard sizes available for Male by Male connections are 6" or 8"
• MxM available in threaded or socket connections
• Standard sizes available for Female by Male connections are 3" or 5" insertion length
• FxM available in NPT or BSPT connections
• Pressure ranges up to 3000 psig
• Temperatures to 260℃ (500℉)
• Field repairable
• Custom designs and lengths available upon request
• Injection Quills now certified to NSF/ANSI-61

Male x Male Injection Quills

Standard features:

• Available in 6 materials of construction, including PVC, CPVC, PP, PVDF, 316 S/S, and Hastelloy C276
• Two standard sizes of 6" or 8"
• Threaded or socket connections available
• Built-in spring-loaded check valve
• Standard 1/8" discharge orifice, and optional 1/4" discharge orifice for higher flow
• Pressure range to 3000 psig
• Temperature range up to 260℃ (500℉)

MxM IQ Instruction Manual

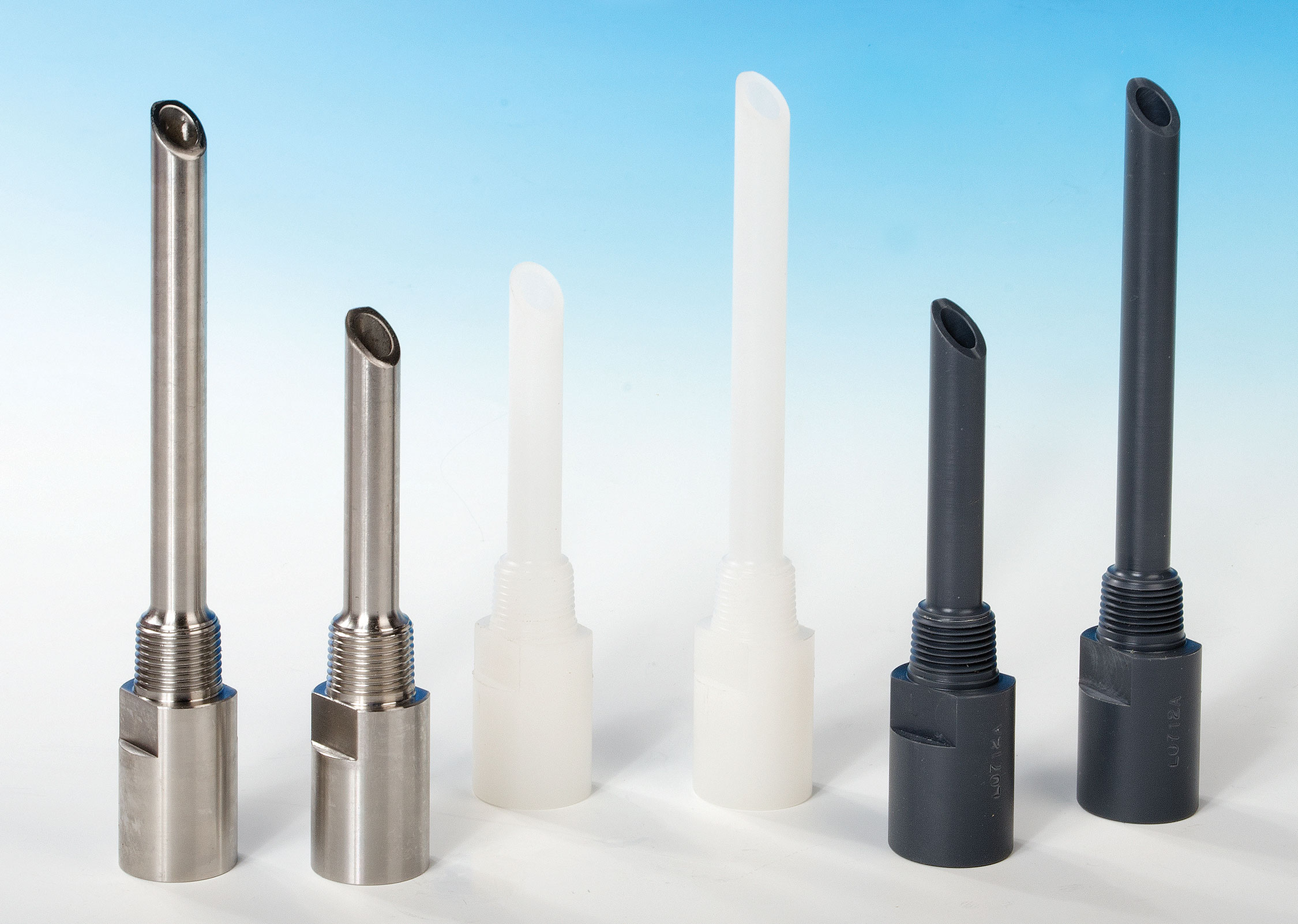

Female x Male Injection Quills

Standard features:

• Available in 6 materials of construction, including PVC, CPVC, PP, PVDF, 316 S/S, and Hastelloy C276
• Two standard sizes available: 3" or 5" insertion length
• NPT or BSPT connections available
• Built-in spring-loaded check valve
• Standard 1/4" discharge orifice for higher flow
• Pressure range to 3000 psig
• Temperature range up to 260℃ (500℉)
• Field Repairable

FxM IQ Instruction Manual
