PFS Corporation Stop

PFS Corporation Stops have been designed to inject chemical into the center stream of the flow.

Standard features include:

Caution: When installing or removing quill from corporation valve gland, ensure that the system pressure is at 0 psig.

Corporation Stop

Further Details:

  • Standard insertion lengths available are 2 5⁄8 inches and 4 5⁄8 inches
  • Custom insertion lengths available upon request
  • Field repairable
  • Available in PVC, CPVC, PP, PVDF, 316 S/S, and Hastelloy C276. Other materials available upon request
  • Maximum temperature (metallic options) of 176℃ (350℉)
  • Maximum pressure (metallic options) of 2000 psig
  • Standard 1/8" discharge orifice for high velocity discharge. Optional 1/4" discharge orifice available for higher capacity flow

PFS Corp Stop Instruction Manual

Corporation Stop in Metal and Plastic

Retractable Corporation Stop

Further Details:

  • Allows installation and retrieval of the quill under full operating pressure up to 1000 psig
  • Titanium Gr. 5 retractable rod for compact design
  • 3 materials of construction for greater durability: 316 S/S, Alloy 20, and Hastelloy
  • Connection in NPT, metric or flanged
  • Extensive variety of designs, materials, and size configurations to best suit your application
  • Retrofit kit is available for standard PFS Corporation Stops

PFS Retractable Corp Stop Brochure

Retractable Corporation Stop High Pressure in Metal

CSB Corporation Stop

Further Details:

  • Brass body construction, meeting or exceeding the Lead Free (LF) requirements of less than 0.25%
  • Available with PVC or CPVC injection quills and couplings
  • Available in NPT or AWWA Pipe Connections in 3/4" or 1" sizes
  • Field repairable
  • Adjustable Insertion Length from 0 to 7.5" (19cm)
  • 1/2" NPT chemical connection sizes standard
  • Stainless Steel Retainer cable for safe removal of quill from service
  • Maximum pressure to 150 PSIG (10 bar) at 68℉ (20℃)

CSB Corp Stop Brochure

CSB Corp Stop Instruction Manual

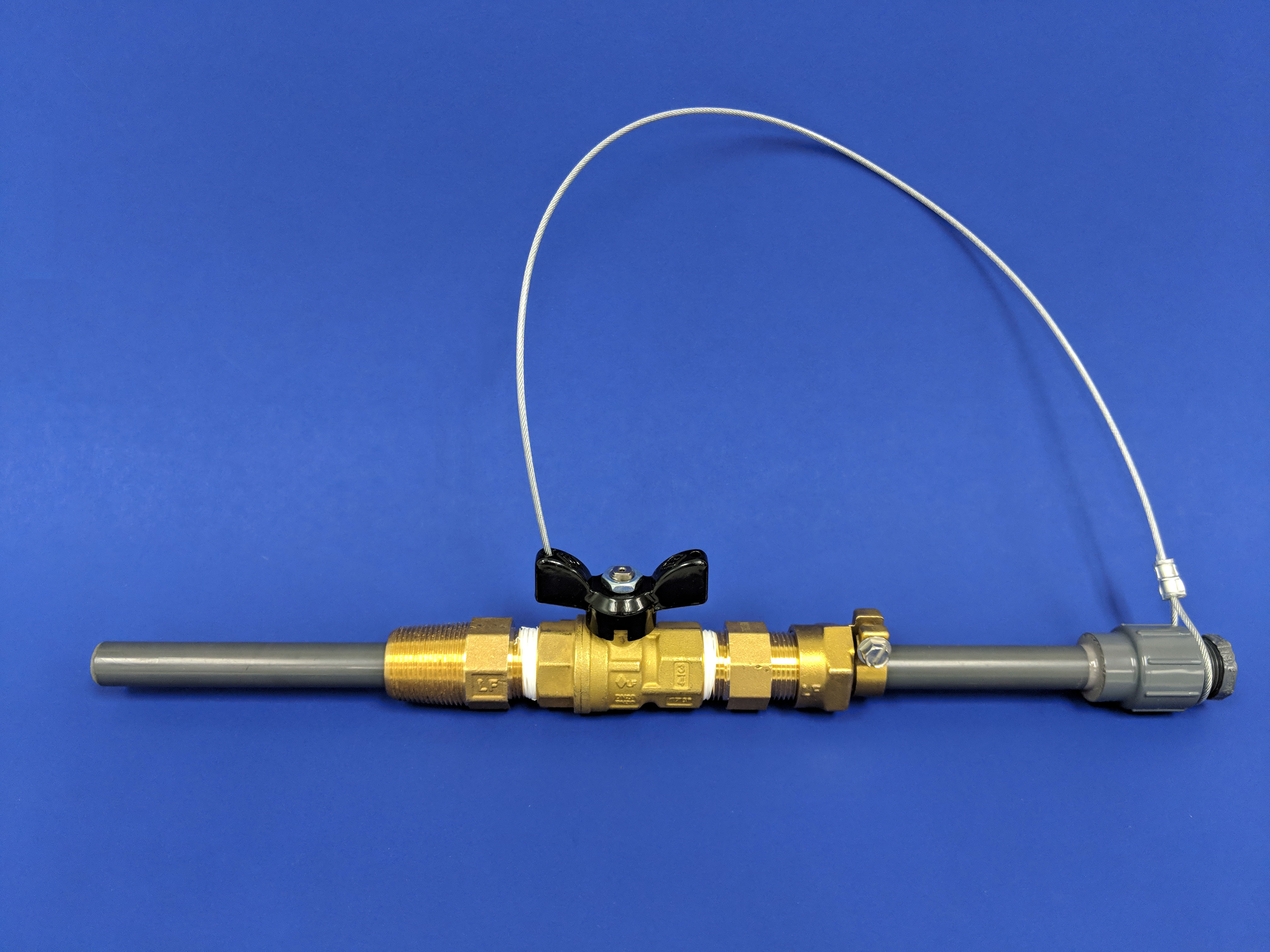

CSB Corporation Stop with blue background
