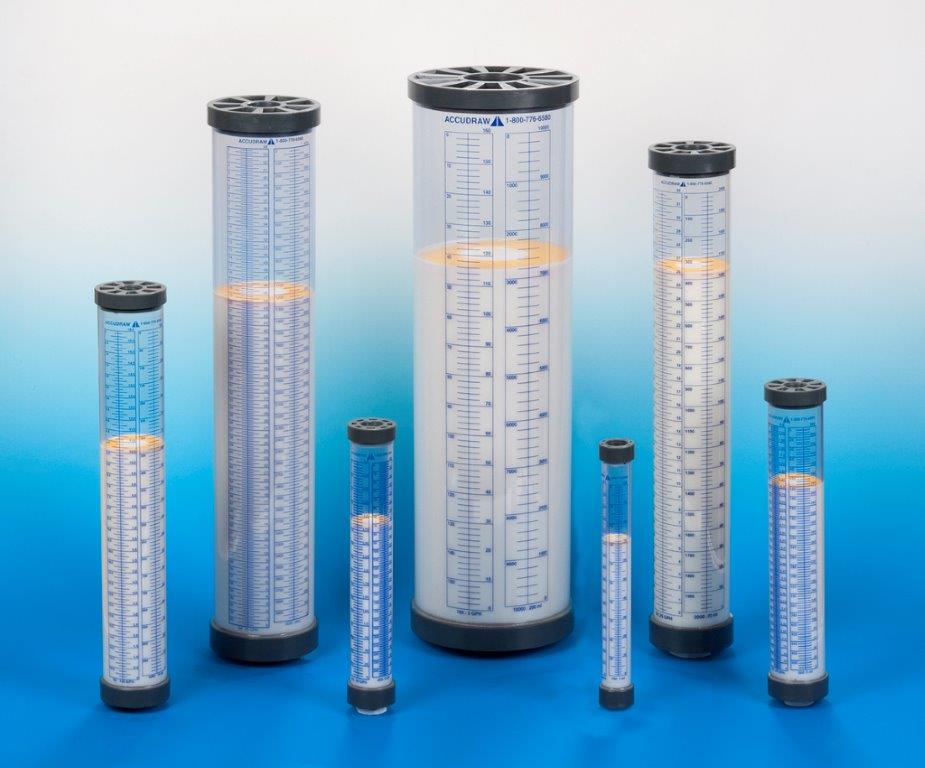

ACCUDRAW® Graduated Calibration Cylinders
Developed for the accurate calibration of metering pumps.
"For Accuracy That Counts"
ACCUDRAW Graduated Calibration Cylinders
Standard Features
-
-
-
-
-
colored graduations and lettering
- PVC has dual scale USGPH & ml
- PVC sizes 100 - 20000 ml
- POLY sizes 100 - 4000 ml
- POLY meets ISO standards

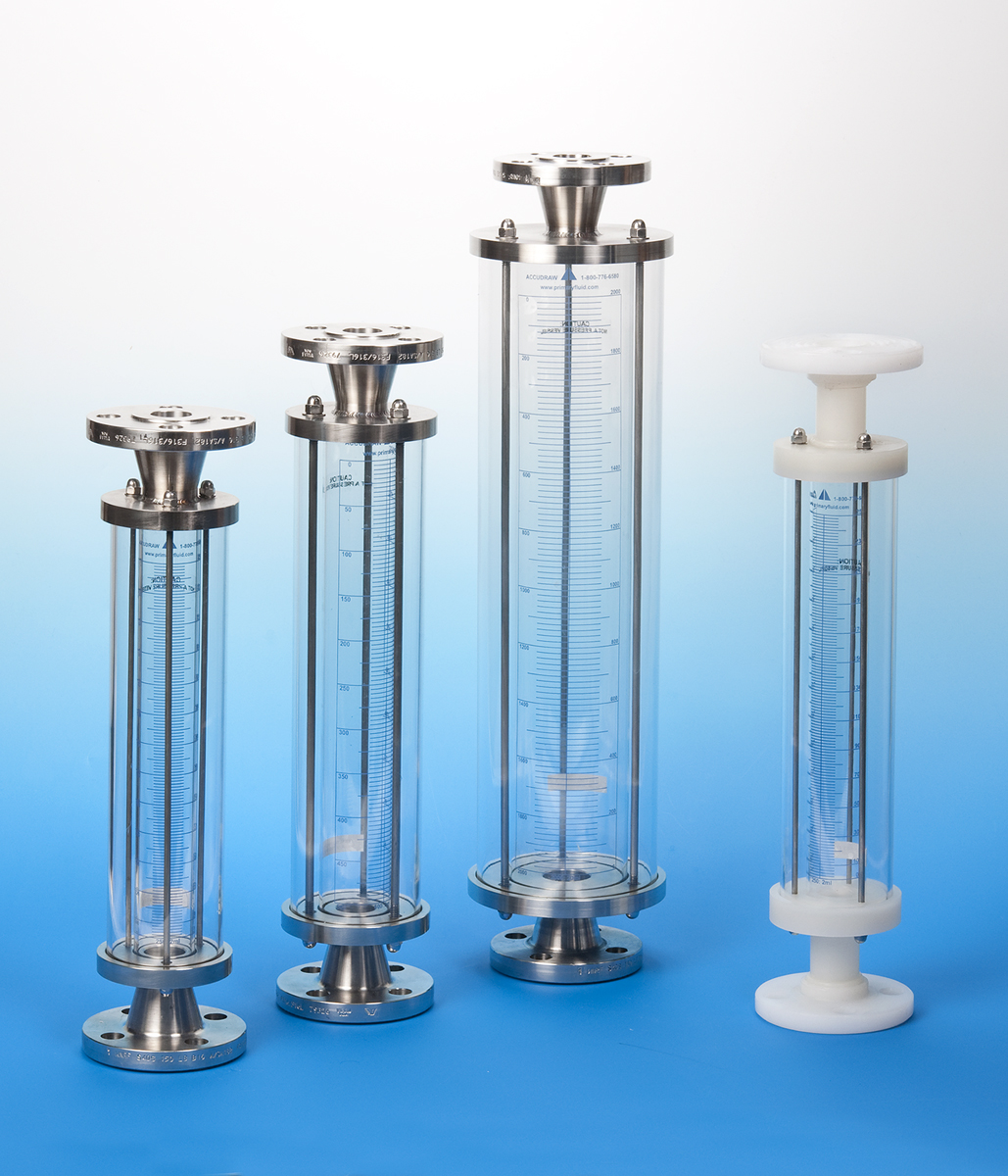

- custom sizes and other materials (acrylic, glass) on request
Available in PVC or Polypropylene
|
Size
|
Conn.
|
BC
|
BTC
|
BDC
|
|
100 ml
|
1/2" NPT
|
AC #1-100
|
AC #2-100
|
AC #3-100
|
|
250 ml
|
1/2" NPT
|
AC #1-250
|
AC #2-250
|
AC #3-250
|
|
500 ml
|
1/2" NPT
|
AC #1-500
|
AC #2-500
|
AC #3-500
|
|
1000 ml
|
1/2" NPT
|
AC #1-1000
|
AC #2-1000
|
AC #3-1000
|
|
2000 ml
|
1.0" NPT
|
AC #1-2000
|
AC #2-2000
|
AC #3-2000
|
|
4000 ml
|
1.0" NPT
|
AC #1-4000
|
AC #2-4000
|
AC #3-4000
|
PVC Construction
|
Size
|
Conn.
|
BC
|
BTC
|
BDC
|
|
100 ml/ 1.6 GPH
|
1/2" NPT
|
PV #1-100
|
PV #2-100
|
PV #3-100
|
|
250 ml/ 4GPH
|
1/2" NPT
|
PV #1-250
|
PV #2-250
|
PV #3-250
|
|
500 ml/ 8GPH
|
1/2" NPT
|
PV #1-500
|
PV #2-500
|
PV #3-500
|
|
1000 ml/ 16 GPH
|
1/2" NPT
|
PV #1-1000
|
PV #2-1000
|
PV #3-1000
|
|
2000 ml/ 32 GPH
|
1.0" NPT
|
PV #1-2000
|
PV #2-2000
|
PV #3-2000
|
|
4000 ml/ 64 GPH
|
1.0" NPT
|
PV #1-4000
|
PV #2-4000
|
PV #3-4000
|
|
10000 ml/ 160 GPH
|
2.0" NPT
|
PV #1-10000
|
PV #2-10000
|
PV #3-10000
|
| 20000 ml/ 320 GPH |
2.0" NPT
|
PV #1-20000
|
PV #2-20000
|
PV #3-20000
|
BC = bottom connection only, open top
BTC = bottom and top connections
BDC = bottom connection and dust cover top
Note:
PVC cylinders available with socket weld connections.
Add suffix "S" to model # e.g. PV#3-100S
For BSP threads, add suffix "B" to model # e.g. PV#3-100B
ACCUDRAW® Graduated Calibration Cylinders
Dimensional Information
Polypropylene Construction
|
Model
|
Size (ml)
|
Div (ml)
|
A (inches)
|
B (inches)
|
|
AC#1
|
100
|
1
|
9.88
|
1.38
|
|
AC#1
|
250
|
2
|
12.44
|
1.75
|
|
AC#1
|
500
|
5
|
14.1
|
2.33
|
|
AC#1
|
1000
|
10
|
17.19
|
2.63
|
|
AC#1
|
2000
|
20
|
20.88
|
3.38
|
|
AC#1
|
4000
|
50
|
23.56
|
4.38
|
|
AC#2/AC#3
|
100
|
1
|
9.25
|
1.38
|
|
AC#2/AC#3
|
250
|
2
|
11.63
|
1.75
|
|
AC#2/AC#3
|
500
|
5
|
13
|
2.32
|
|
AC#2/AC#3
|
1000
|
10
|
16.5
|
2.69
|
|
AC#2/AC#3
|
2000
|
20
|
19.5
|
3.38
|
|
AC#2/AC#3
|
4000
|
50
|
22.13
|
4.38
|
PVC Construction
|
Model
|
Size
(ml)
|
Divisions (ml)
|
Size
(GPH)
|
Divisons
(GPH)
|
A
(inches)
|
B
(inches)
|
|
PV#1
|
100
|
1
|
1.6
|
0.02
|
10.24
|
1.388
|
|
PV#1
|
250
|
2
|
4
|
0.05
|
11.04
|
1.888
|
|
PV#1
|
500
|
5
|
8
|
0.05
|
12.25
|
2.388
|
|
PV#1
|
1000
|
10
|
16
|
1.125
|
16.24
|
2.765
|
|
PV#1
|
2000
|
20
|
32
|
0.25
|
20.16
|
3.517
|
|
PV#1
|
4000
|
25
|
64
|
0.25
|
22.16
|
4.521
|
|
PV#1
|
10000
|
200
|
160
|
2
|
22.64
|
6.906
|
|
PV#1
|
20000
|
200
|
320
|
2
|
42.19
|
6.906
|
|
PV#2
|
100
|
1
|
1.6
|
0.02
|
10.75
|
1.388
|
|
PV#2
|
250
|
2
|
4
|
0.05
|
11.51
|
1.888
|
|
PV#2
|
500
|
5
|
8
|
0.05
|
12.75
|
2.388
|
|
PV#2
|
1000
|
10
|
16
|
0.125
|
16.76
|
2.765
|
|
PV#2
|
2000
|
20
|
32
|
0.25
|
20.67
|
3.517
|
|
PV#2
|
4000
|
25
|
64
|
0.25
|
22.66
|
4.521
|
|
PV#2
|
10000
|
200
|
160
|
2
|
23.16
|
6.906
|
|
PV#2
|
20000
|
200
|
320
|
2
|
42.69
|
6.906
|
|
PV#3
|
100
|
1
|
1.6
|
0.02
|
10.75
|
1.388
|
|
PV#3
|
250
|
2
|
4
|
0.05
|
11.51
|
1.888
|
|
PV#3
|
500
|
5
|
8
|
0.05
|
12.75
|
2.388
|
|
PV#3
|
1000
|
10
|
16
|
0.125
|
16.76
|
2.765
|
|
PV#3
|
2000
|
20
|
32
|
0.25
|
20.67
|
3.517
|
|
PV#3
|
4000
|
25
|
64
|
0.25
|
22.66
|
4.521
|
|
PV#3
|
10000
|
200
|
160
|
2
|
23.16
|
6.906
|
|
PV#3
|
20000
|
200
|
320
|
2
|
42.69
|
6.906
|
ACCUDRAW® Graduated Calibration Cylinders
Installations (place mouse on picture to enlarge)
|
